This Day in History (1986): Crude Tank T&I Covers a Lot of Ground

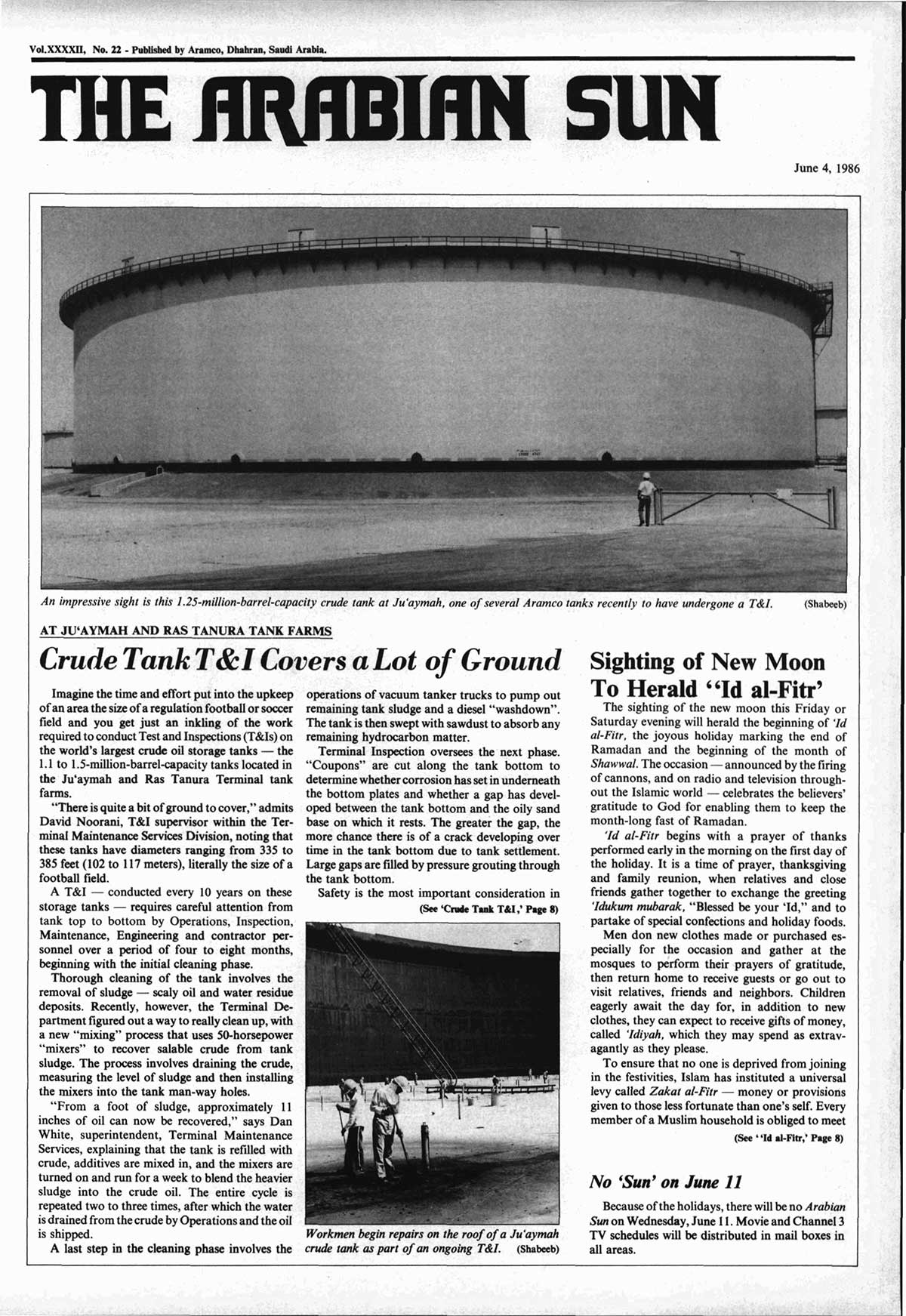

From the June 4, 1986, edition of The Arabian Sun

Imagine the time and effort put into the upkeep of an area the size of a regulation football or soccer field, and you get just an inkling of the work required to conduct Test and Inspections (T&Is) on the world's largest crude oil storage tanks -- 1.1 million to 1.5-million-barrel capacity tanks located in the Ju'aymah and Ras Tanura Terminal tank farms.

"There is quite a bit of ground to cover," admits David Noorani, T&I supervisor with the Terminal Maintenance Services Division, noting that these tanks have diameters ranging from 335 to 385 feet (102-107 meters), literally the size of a football field.

A T&I -- conducted every 10 years on these storage tanks -- requires careful attention from tank top to bottom by Operations, Inspection, maintenance, Engineering, and contractor personnel over a period of four to eight months, beginning with the initial cleaning phase.

Thorough cleaning of the tank involves the removal of sludge -- scaly oil and water residue deposits. Recently, however, the Terminal Department figured out a way to really clean up, with a new "mixing" process that uses 50-horsepower "mixers" to recover salable crude from tank sludge.

The process involves draining the crude measuring the level of sludge and then installing the mixers into the tank man-way holes.

"From a foot of sludge, approximately 11 inches of oil can now be recovered," says Dan White, superintendent of Terminal Maintenance Services, explaining that the tank is refilled with crude, additives are mixed in, and the mixers are turned on and run for a week to blend the heavier sludge into the crude oil. The entire cycle is repeated two to three times, after which the water is drained from the crude by Operations, and the oil is shipped.

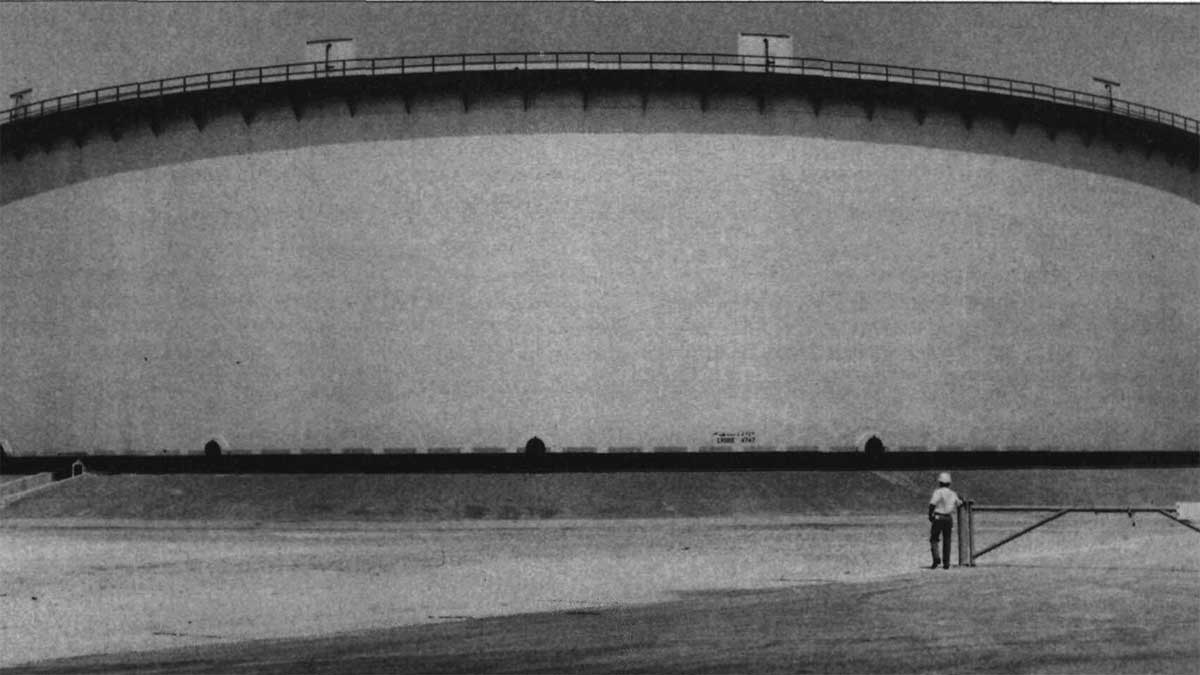

Caption for top photo: An impressive sight is this 1.25-million-barrel capacity crude tank at Ju'aymah, one of several Aramco tanks recently to have undergone a T&I.
